HDMI Video Outputs
1 x HDMI 2.1 (Type A)
Outputs resolution and frame rateset in Blackmagic Camera for iOS.

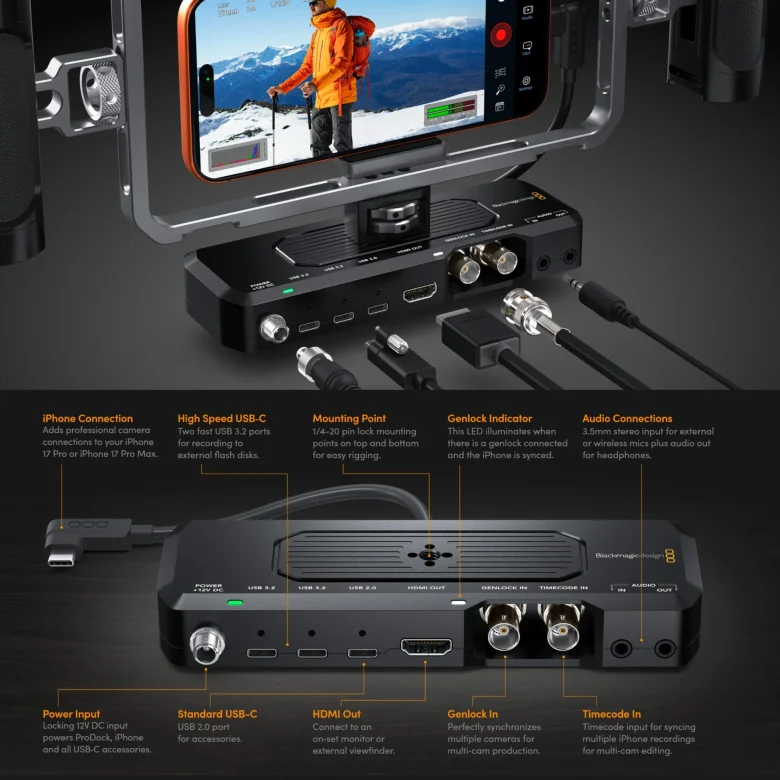

Blackmagic Camera ProDock
Adds Genlock and Timecode for Multicam Production! With professional BNC connections, Blackmagic Camera ProDock supports external genlock and timecode to keep all your cameras in perfect sync. It also lets you shoot LED walls with no distracting flickering or tearing, which is important for virtual production!
HDMI for OnSet Monitoring
Blackmagic Camera ProDock includes a full sized HDMI port so you can connect your iPhone to external monitors! This makes it easy for crew to frame and monitor shots from any position on set.
Add External Microphones and Audio Monitoring
Blackmagic Camera ProDock features a 3.5mm audio input so you can use high quality hand held, lapel or shotgun microphones when you need a more directional microphone. You can also monitor sound on set using the 3.5mm headphone jack!
Add Accessories and External Disks
Two fast USB 3.2 ports let you connect high capacity, high speed external disks to massively extend your recording time, while the single USB 2.0 port suits accessories such as lens control systems! Plus, intelligent power management ensures everything can run at the same time.
RM1,335
- For Apple iPhone 17 Pro & Pro Max
- Works with BlackMagic Camera App
- Access ProRes RAW & Genlock on iPhone
- Genlock & Timecode Ports for Camera Sync
- Flicker-Free Camera & LED Wall Sync
- HDMI Output for Monitoring Footage
- 3 x USB-C for Control & Storage Devices
- 3.5mm Mic Input & Headphone Output
- Power All with Locking 12 VDC Port
- Top & Bottom 1/4″-20 Pin Lock Mounting
- Compatibility Apple iPhone 17 Pro / iPhone 17 Pro Max
Connections
Audio Inputs
1 x 3.5mm stereo mini-jack.
Audio Outputs
1 x 3.5mm stereo mini-jack.
Timecode Input
1 x BNC,
1 x 3.5mm audio input supports timecode in.
Genlock Input
1 x BNC, Tri-Sync or Black Burst.
Genlock supported on iPhone 17 Pro and iPhone 17 Pro Max.
USB-C Ports
2 x USB 3.2 high speed portsfor recording to external media
1 x USB 2.0 port for accessories
Power
+12V to +15V DC input withlocking 5.5mm barrel connector.
iPhone Connection
1 x USB-C cable and plug.
Audio
Microphone
Connect external microphones via the3.5mm stereo mini-jack, or USB‑C ports.
Monitor
Connect headphones via the3.5mm stereo mini-jack audio output.
Media
Media
Record Blackmagic Camera clips to internal iPhone storage or external storage connected by USB.
Display
Status Indicator
1 x power LED indicator,
1 x front tally LED indicator,
1 x genlock LED indicator.
Software
Blackmagic Camera for iOS
Download for free on the App Store.
Operating System
Supported on iPhones running iOS 26 or later.
Genlock available on iPhone 17 Pro and iPhone 17 Pro Max models only.
Support for all other features available on iPhone 15 Pro, iPhone 15 Pro Max,iPhone 16 Pro, and iPhone 16 Pro Max models.
Power
Power Supply
1 x External 12V DC 60W power supply.
Power Inputs
+12V to +15V DC input withlocking 5.5mm barrel connector.
Power Outputs
5V 𝌂 1.5A 7.5W max output each USB‑C port.
Physical Specifications
Environmental Specifications
Operating Temperature
0°to 40°C (32° to 104°F)
Storage Temperature
-20°to 45°C (-4° to 113°F)
Relative Humidity
0% to 90% non-condensing
What’s Included
Blackmagic Camera ProDock
1/4 inch to 1/4 inch mounting adapter
External 12V DC power supply with locking connector and international socket adapters
Welcome wallet with QR code for software download
Warranty
Product Warranty
1 Year Limited Manufacturer’s Warranty.
12 Month Limited Manufacturer’s Warranty
