2110 IP Video and Audio Networks
2 x 10G RJ45 Ethernet connections.

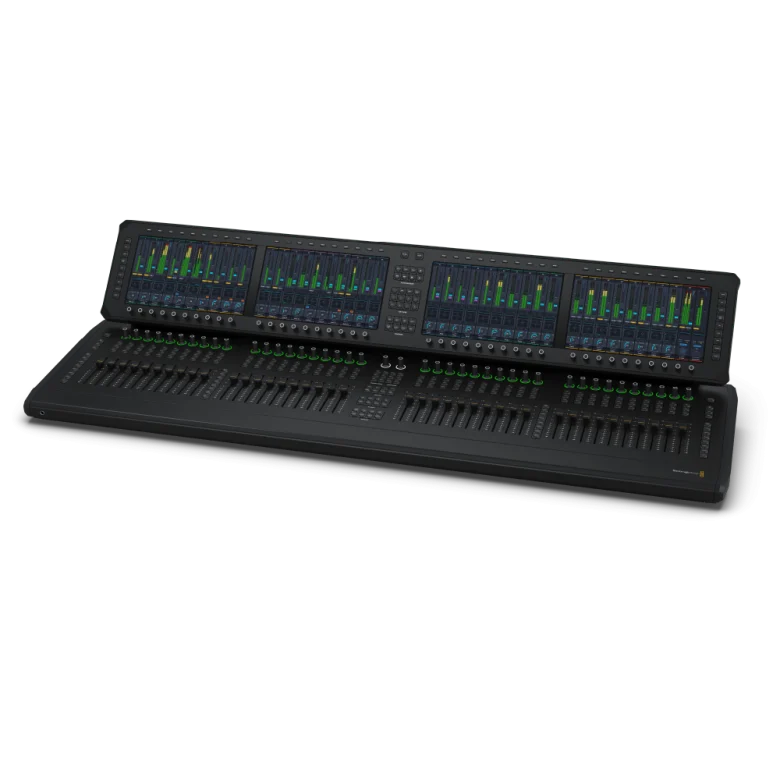

Blackmagic Design Fairlight Live Audio Panel 40
Fairlight Live is the world’s most powerful live audio mixer. Unlike traditional hardware based audio mixers, Fairlight Live is a software-based mixer, so it can support incredibly powerful features such as spatial audio mixing and SMPTE-2110 broadcast workflows. It even supports full redundancy! Fairlight Live easily handles hundreds or even thousands of audio channels, depending on your computer. Plus, it works with standard computer audio or USB audio from ATEM live production switchers. This means you get a fully customizable live audio mixer with built-in effects and professional features such as a cue player, talkback busses, third-party plug-in support, snapshots and so much more!
airlight Live Audio Panel 40 is a desktop control surface with 40 motorized faders and four large touchscreen displays, designed for professional live audio mixing with Fairlight Live. Controls include layers, bus, matrix, aux, VCA, sub-masters and talkback for fast hands-on access to your mix. The touchscreens display channel strip information, levels, EQ, dynamics processing and plug-in interfaces. Ideal for large live broadcasts. Fully integrated with Fairlight Live.
RM33,855
- Fully Customizable Software Mixer
- Supports hundreds and even thousands of input channels across a variety of formats
- Cue Player for Audio and MIDI Cues
- Test Tones and Signal Generators
- Designed for SMPTE-2110
- Works with ATEM Live Production Switchers
- Remote Control for Multiple Users
- 40 motorized faders, four large touchscreen displays, controls for layers, bus, matrix, aux, VCA, sub-masters, talkback and more
Connections
Senders and Receivers per 10G Pair
Supports 2110 IP video and audio plus analog audio in and out of panel.
1G Control Network
1 x 1G RJ45 for computer connection, configuration and software updates.
HDMI Monitor Outputs
1
Analog Audio Inputs
1 x 3-pin XLR for mic level analog audio.
1 x 5-pin XLR for talkback headset.
Analog Audio Outputs
2 x 3-pin XLR for line level analog audio.
1 x 5-pin XLR for talkback headset.
2 x 6.35mm headphone jack.
Computer Interface
1 x USB Type‑C for computer connection, software configuration and software updates.
HDMI Video Output
1 x HDMI Type A.
Power
2 x IEC C14 power inputs.
Display
techspecs:built-in-display
4 x 11.6 inch 1920 x 1080 LCD touch screens.
techspecs:hdmi-out
HD or Ultra HD
Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60Controls
Channel Faders
40 flying faders.
Channel Rotary Knobs
40 multi function rotary knobs with ring LED indicators.
Channel Control Buttons
Select, Solo and Mute for each channel.
Channel Focus
Processing and input controls for selected channel.
Contextual Rotary Knobs
40 rotary knobs to adjust associated parameters appearing on lower row of focus and view screens.
Contextual Buttons
40 buttons to activate functions or adjust parameters appearing on upper row of focus and view screens.
On Line Button
Online mode follows timecode from external source.
On Air Button
On Air mode locks panel.
Player/Recorder Keypad
Controls for the Player/Recorder support recording performances/rehearsals, playback for Virtual Sound Checks
Cue Player Keypad
Cue Player controls – Jingle/Cart player for SFX stingers plus supports MIDI cues for triggering external devices.
Snapshots Keypad
Store and recall mixer settings and configurations.
Control Room and Monitoring Keypad
Controls for source selection and monitor circuit selection.
Masters Keypad
Controls for master views and enabling masters on faders. View Only selection sends metering views to screen, when off selection targets faders.
Globals Keypad
Global controls include forward, back, undo and escape plus access the setup screen and 3 x USER defined buttons.
Talkback Keypad
Controls for talkback to 4 groups, direct to channel and ALL. Dedicated cue mode button plus access the talkback setup screen.
Talkback
Microphone
1 x built in talkback microphone.
Talkback Connections
1 x 5-pin XLR headset
1 x 3-pin XLR Mic input
2 x 6.35mm headphone sockets
2 x 3-pin XLR audio monitor outputs.
Talkback Selection
Talkback groups, direct to channel, or all.
Talkback Groups
4
Software
Software Included
Fairlight Live
Blackmagic OS
Internal software upgrade via updater application.
Operating Systems
Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.
Windows 11Settings Control
Fairlight Live software when connected by Ethernet or USB. Power Requirements
Power Supply
2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
Power Inputs
2 x IEC C14 sockets.
Power Usage
TBC
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non-condensing
What’s Included
Fairlight Live Audio Panel 40Welcome wallet with QR code for software download Warranty
1 Year Limited Manufacturer’s Warranty. 12 Month Limited Manufacturer’s Warranty
