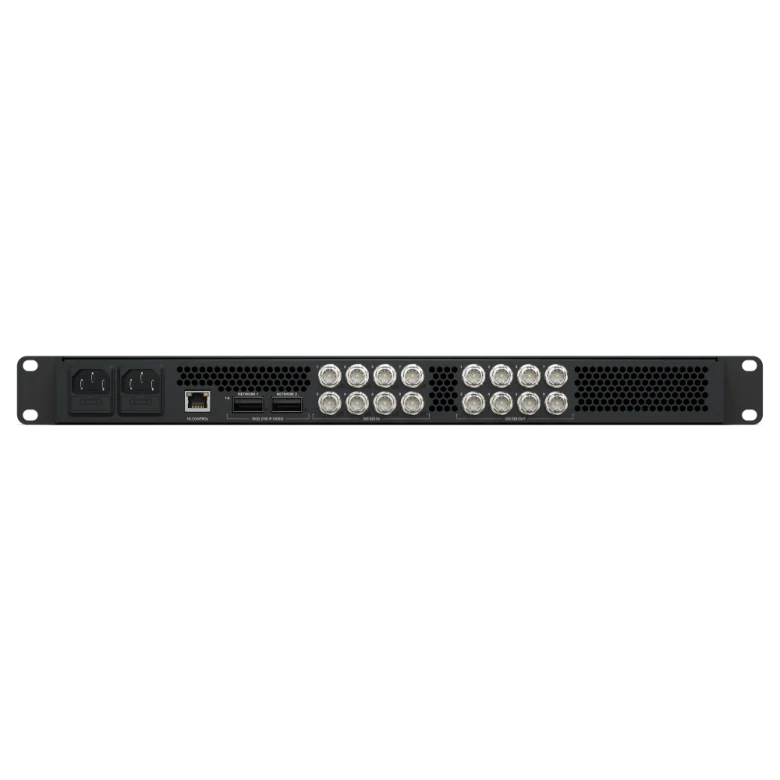

Blackmagic Design SDI Expander 8x12G
The Blackmagic Design SDI Expander 8x12G is a 1 RU bidirectional SMPTE 2110 IP converter designed to integrate 12G-SDI infrastructure into high-bandwidth 100GbE broadcast systems. Supporting up to 16 channels of simultaneous 10-bit 4:2:2 video conversion, the unit converts eight independent 12G-SDI inputs to SMPTE 2110 IP while concurrently converting eight SMPTE 2110 IP streams back to 12G-SDI outputs. Dual 100GbE QSFP28 connections provide SMPTE ST 2022-7 redundancy, ensuring uninterrupted signal delivery across IP-based production workflows.
Engineered for hybrid SDI/IP environments, the expander supports SD, HD, and Ultra HD formats up to 4K60 with automatic detection, along with 16 channels of embedded audio per 2110 IP video stream. A front-panel 2.2″ LCD with integrated control knob and buttons enables real-time monitoring of video, audio, and system parameters, while a built-in speaker and headphone output allow for direct audio confidence monitoring. External control is supported via a dedicated RJ45 for NMOS-based configuration and USB-C for setup and firmware updates, with dual IEC power inputs ensuring power redundancy for reliable performance.
SDI and IP Video Conversion
- Simultaneous bidirectional conversion between 12G-SDI and SMPTE 2110 IP video
- Eight 12G-SDI inputs and eight 12G-SDI outputs in a single 1 RU chassis
- Dual 100GbE QSFP28 ports with SMPTE ST 2022-7 redundant streaming
- Auto-detection of SD, HD, and Ultra HD formats up to 4K60
- 10-bit 4:2:2 video with Rec. 709 and Rec. 2020 color space support
- 16 channels of embedded audio per IP video stream
Convenient Design
- 2.2″ front-panel LCD for video, audio, and system monitoring
- Integrated control knob and buttons for configuration and routing
- Built-in speaker and headphone output for audio monitoring
- Dedicated RJ45 port for NMOS control, configuration, and updates
- USB-C interface for firmware updates and local configuration
- Dual IEC C14 AC inputs for redundant power delivery
RM13,529
- Connect 12G-SDI Gear to 100GbE Systems
- Convert 16 Channels of 4K60 10-Bit Video
- 8 x 12G-SDI Inputs to 100GbE Output
- 100GbE Input to 8 x 12G-SDI Outputs
- SMPTE 2110 IP Video Compliance
- 2.2″ LCD Monitor & Control Knob/Buttons
- 1 RU Form Factor
- External NMOS Control via RJ45 Port
- 16 Audio Channels per 100GbE Connection
- 2 Redundant AC Power Inputs
- Key Specs
Video I/O Video Resolution Audio Format Broadcast System Compatibility Wireless OS Compatibility Inputs/OutputsVideo I/O Expansion Slots Format SupportVideo Resolution Audio Format Embedded Audio Reclocking StandardsVideo Standard Compliance HDR Support HDMI CEC Broadcast System Compatibility HardwareWireless OS Compatibility DisplayDisplay PowerPower I/O PoE Support Power Consumption GeneralOperating Conditions Storage Conditions Rack Form Factor Certifications Dimensions 12 Month Limited Manufacturer’s Warranty
